US Water Dual Big Blue Dimesional DrawingQuality product
"Very good flow, great whole house system! I have carbon block and flouride reduction filters installed. Water tastes great!"
SIGN UP FOR OUR NEWSLETTER
Receive our latest updates about our products & promotions.

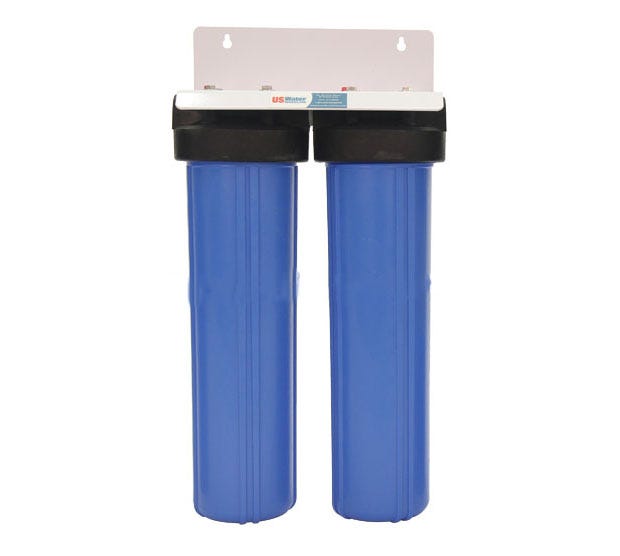

US Water Big Blue 4.5 X 20 Dual Filtration System
SKU:
320-BBF2-20 : 320-BBF2-20-10
This 2-Stage filtration system is designed to filter the water supply for a whole house or other pre-filtration application for business or industry
Subtotal:
$299.95
Free Shipping
Free standard shipping on most products over $199.
One Year Satisfaction Guarantee
Learn More.
US Water Two-Stage 4.5" x 20" Water Filtration System
- 3/4" or 1" Full Flow Inlet & Outlet
- Includes mounting bracket, screws, and filter wrench.
- Flows up to 25 GPM, depending upon filters utilized.
20" Commercial-Grade Cartridge Filter Housing With 3/4" or 1" Inlet/Outlet - Includes Pressure Relief Valve
This is a commercial-grade high-quality, rugged filter housing built to withstand severe conditions. It's exclusive thread design provides superior sealing and greater security against leaks. The replacement filters are compatable with any 4.5" x 20" filter cartridge on the market. It uses the same cartridges as Ametek, American Plumber, Culligan, Flowmatic, Liquatec, Pentek and Watts, as well as most other brands of housings.
Filter Options
- 20 & 5 Micron Pleated filters for removing moderate amounts of dirt and sediment (typically used for well water)
- 5 & 1 Micron Pleated filters for removing finer dirt and sediment (typically used for city or well water)
- 5 micron & Radial Carbon filters for removing dirt, sediment, and chlorine (typically used for city water)
- 5 micron Pleated & Carbon Block for removing dirt, sediment, and chlorine (typically used for reverse osmosis pre-treatment)
Features
- Manufactured from the highest quality, FDA grade, 100% NSF listed polypropylene
- Leak-proof sealing is accomplished by compression against a top seated EPDM o-ring located in the housing’s sump
- Thick wall and added ribs make the housings ideal for a wide range of applications
- Buttress Thread Design Provides Superior Sealing & Greater Security
- Polypropylene construction provides excellent chemical resistance with most acids, alcohol, ammonia, oils, plating solutions and many aggressive chemicals
- Housings supplied with pressure release valves
- Rated for temperatures to 100°F and pressures to 90 psi
- Utilizes 20 in.Big Blue Commercial Housing with Pressure Relief Valve
- 3/4" or 1" Inlet & Outlet
NOTE:If you are unsure what type of filter would be best for your application, contact one of our Certified Water Specialists at 800-608-USWA or e-mail us at support@uswatersystems.com. Our experts are available 7 days a week from 8 AM until 11 PM EDT.
Overall rating: 4.5 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["smell","water","filter","flow"].
Review highlights
Reviews
The unit and filters are really nice and they helped but didn't fully solve our problem
"We have a seasonal at a campground where the well water is hard and has a sulfer smell where the sulfer gas goes only to both bathroom sinks, which are the highest water lines in the camper. Been trying to get rid of the sulfer gas for two seasons trying various 2" size filters in the water cabinet filter housing and even adding another 2" filter housing at the faucet, but they didnt really help the smell and just reduced water flow pressure. I added a camper water softener hoping the resin would help the smell but it didnt, just made the water feel better and no stains in sink or toilet. I called US Water Systems a couple times trying to find a way to make it work without spending 2k on a hydroperoxide system and was given the carbon block filter/carbon radial filter dual 4.5x20" filters idea. In all fairness I was told it won't eliminate the sulfer hydroxide gas like a hydroperoxide system will, but should make it much better. It did improve our water flow pressure back to where it should be and in the first week of it being used it was super awesome. We would turn on the bathroom sinks after even all day sitting unused and maybe 3-5 seconds had a slight smell then gone completely, but over a couple weeks now the smell has gotten stronger and lasts a half minute or so now. Overall it has helped and the smell doesnt last nearly as long as last summer. I don't regret the purchase, I just had higher expectations when the first week was so fantastic. The filters claimed to be a once a year filter for my application, and maybe they will be but with a 30 second runout time rather than 5 seconds. Thats kind of a bummer, but still better."
Q&A
- Can you use any filter in the Big Blue Dual System and have copper pipes in the home? I see that one filter is for RO pretreatment, does this system require you change the piping in the home to a poly line? I am a plumber who was asked to install this for a client, I do not want to put them at risk by over filtering there water supply, and it pulling carcinogens from their existing copper water lines. Thank you for your time.
- Yes, unless you are installing a RO system you do not need to be concerned about the copper pipes. Sediment and carbon filters used in this setup filter sediment and chemicals but does not reduce the total dissolved solids.
