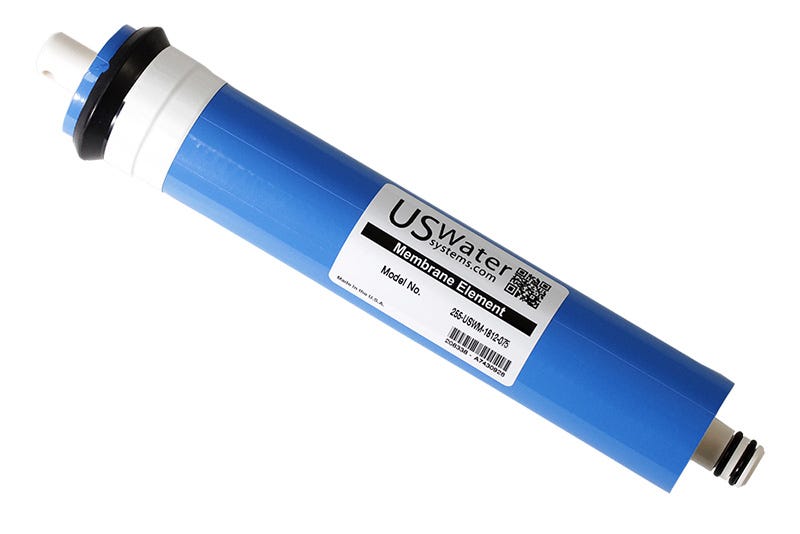

US Water Residential Membrane 75 GPD

US Water 75Gallon Per Day Premium Reverse Osmosis TFC Membrane

11.75" x 1.75" Standard Size RO Membrane

Replaces the Following Membranes

• RO Ultratec
• Filmtec TW30-1812-75
• Filmtec 93430
• Filmtec 339140
• Hague 200290
• Desal TFM-75
• Watts W-1812-75

Operating Limits

• Membrane Type: Thin Film Composite
• Maximum Operating Temperature: 110°F (43°C)
• Maximum Operating Pressure: 125 PSI
• Maximum Feed Flow Rate: 1 GPM
• Minimum Concentrate Flow Rate: 4 x Permeate
• pH Range, Continuous Operation: 3 - 11
• Maximum Feed Water Turbidity: 1 NTU
• Maximum Feed Silt Density Index (SDI): 5 SDI
• Chlorine Tolerance: 0 PPM

Features

• NSF 58 Approved
• 100% Integrity Tested
• Shipped Dry for Extended Shelf Life
• Accommodates all 2” x 12” Residential Membrane Housings
• Made in the U.S.A.

Dimensions (Inches)

A: 11.75
B: 10.00
C: 0.86
D: 0.88
E: 1.78

NOTE: If you are changing membranes, it is always a good practice to change the drain line flow restrictor on the reverse osmosis system. It can become plugged with years of usage (which mean that you don't have enough flow to drain to properly flush the impurities off the membranes' surface, causing early membrane failure), or if you are installing a larger or smaller membrane, the flow restrictor needs to be changed. This 75 GPD Membrane utilizes a drain line flow restrictor that is capable of approximately 100 GPD of 260 ml to drain.
