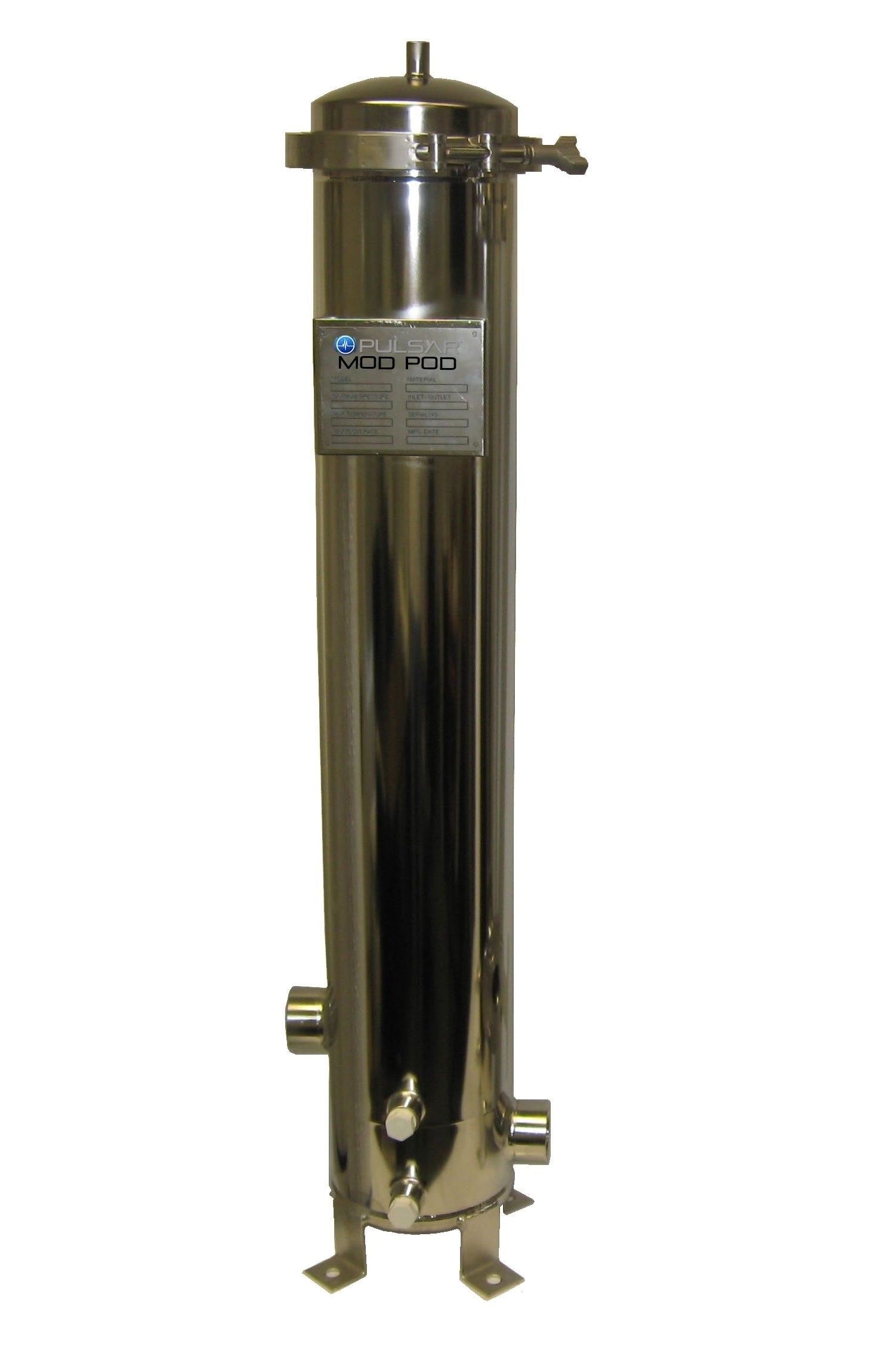

US Water Mod Pod Stainless Steel 1.5" Commercial Filter Housing

Cut the cost of high flow filtration in half

Filtration for high flow or commercial applications can be very costly, but it doesn’t have to be that way. The US Water Modular Pod Filter or Mod Pod Filter brings down the cost of filtration to an extremely cost-effective level. The US Water Mod Pod System comes standard with a 5 Micron High Efficiency Pleated Polyester Filter with a whopping 78 pleats! Each cartridge has 40 square feet of media. It is also available with our Revolutionary US Water Disrupter Filter that uses electro-adhesion to achieve sub-micron filtration that removes the largest spectrum of contaminants of any water filter system, such as the following:

• Bacteria
• Cysts
• Virus
• Endotoxins
• Chloramines
• Chlorine
• Chromium 6
• Lead
• Fluoride
• THM
• TCE
• Dioxin
• Pharmaceuticals
• Tannin
• Pesticides
• … and a whole lot more

Designed to flow up to a maximum of 45 GPM, the US Water Modular Filter Pod (“Mod Pod”) is a 1-1/2” Stainless Steel Filter Housing which is engineered to handle serious filter applications. The beauty of the system is that it is fully modular and expandable - from one module at 45 GPM up to any flow rate that is needed. The Mod Pod modular water filter system is designed for practically any application, such as:

• Commercial Water Systems
• Industrial Process Water Systems
• Cooling Towers
• Reverse Osmosis Pre-Filtration
• Whole House (POE) filtration
• Food and Beverage Applications
• Cosmetics Manufacturing
• Craft Beer Brewing
• Hydroponics Water Systems

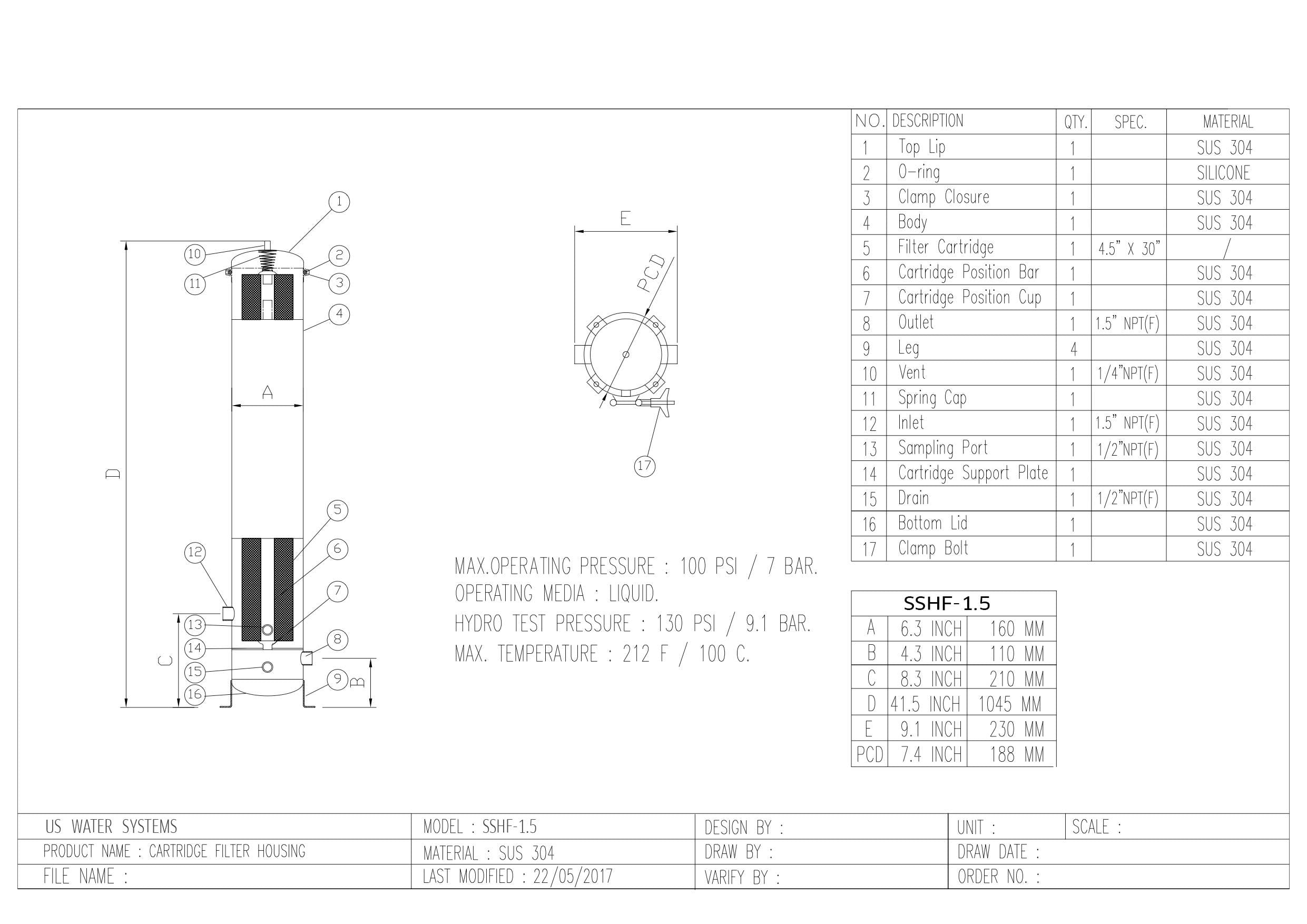

Specifications

• Inlet & Outlet: 1.5" FNPT
• Drain: 0.5" FNPT
• Sample Port: 0.5" FNPT
• Maximum Flow Rate: 45 GPM @ 25 PSI Pressure Drop
• Intermediate Flow Rate:  32 GPM @ 15 PSI Pressure Drop
• Low Flow Rate:  18 GPM @ 5 PSI Pressure Drop
• Materials: 304 Stainless Steel
• Maximum Operating Pressure: 100 PSI
• Maximum Temperature: 212°F (housing only)
• Cartridge Size: 4.5" x 30" 222 Seal
• Closure: Band Clamp
