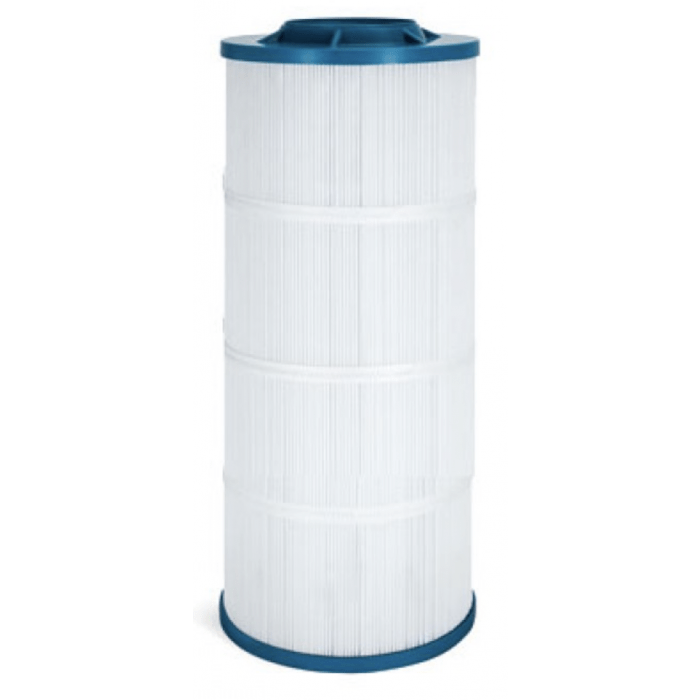

HydroScientific HSC-90 Jumbo 90 High Flow Pleated Polyester Cartridges

List Price: Factory Direct Price: SALE PRICE:
$73.95
$73.95
$73.95 FACTORY DIRECT SAVINGS
SKU: 644-HSC-90 : 644-HSC-90-150
The HydroScientifc™ Jumbo HSC-90 Pleated Polyester Filter Cartridges are high flow performance cartridges designed to meet or exceed operational requirements in high flow applications. They are compatible with Harmsco 90 and Watts Flow-Max Jumbo FMHC models. The HydroScientific Jumbo HSC-90 cartridge complies with NSF/ANSI Standard61 Material Safety Requirements.
Subtotal: $73.95

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
HydroScientific HSC-90 Jumbo 90 High Flow Pleated Polyester Cartridges

HydroScientific HSC-90 Jumbo 90 High Flow Pleated Polyester Cartridges

$92.44 $73.95

HydroScientific HSC-90 Jumbo 90 High Flow Pleated Polyester Cartridges

$92.44 $73.95
Filter Options: 150 Micron

Hydroscientific

The HydroScientific Jumbo HSC-90 Pleated Polyester Jumbo Filter Cartridge features synthetic polyester filter media which offers the lowest initial pressure drop and delivers higher flow rates.  This also means less frequent cartridge changes. Additionally, the HydroScientifc™ Jumbo HSC-90 Pleated Polyester Filter Cartridges deliver longer filter life, higher dirt-carrying capacity, and increased particle removal.

Features & Benefits of HydroScientific HSC-90

  • Pleated Polyester - For the greatest economy and longevity
  • No Surfactants or Binders - Manufactured to the highest standards
  • Pleated Media - Pleated media is superior in every way
    • More surface area
    • Lower pressure drop
    • Increased dirt-holding capacity
    • Increased particle removal
    • Longer filter change intervals
  • Lowest Maintenance Costs - High dirt-carrying capacity mean fewer filter changeouts and lower maintenance costs
  • NSF/ANSI Standard 61 Compliant - 100% Surfactant and Binder Free
  • Lowest Cost - Filters more gallons than comparable filters meaning a lower cost per gallon filtered

Applications of HydroScientific HSC-90HSC-90 Cartridge Dimensions

  • Well Water Applications
  • Whole House Filtration
  • Desalination Prefiltration
  • Residential Applications
  • Commercial Applications
  • Industrial Applications
  • Paper and Pulp Applications
  • Paint, Ink and Coating Applications
  • Process Water Applications
  • Cooling Tower Applications
  • Waste Water Applications
  • Reverse Osmosis Prefiltration

Materials of Construction of HydroScientific HSC-90

  • Filter Media: Polypropylene
  • End Caps: Polypropylene
  • Center Tubes: Polypropylene

Engineering Specifications of HydroScientific HSC-90

  • Filter Diameter: 7-3/4"
  • Filter length: 19-1/2"
  • Square Feet of Media (surface area) - 90 (approx.)
  • Maximum Flow Rate - 100 GPM
  • Recommended Maximum Flow Rate: 70 GPM
  • Real-World maximum Flow Rate: 24 GPM (highest purity)
  • Box Dimensions: 9" x 9" x 21"
  • Weight: 4.80 lbs
  • Maximum Temp: 140°F (60°C)
  • Country of Origin: Taiwan

Meets or Exceeds Compatibility with Harmsco Model HC-90 Series

FDA/USP Material Safety Compliance – All Materials comply with FDA requirements for food and beverage contact per CFR Title 21 174.5, 177.1520 and 177.1630. All Components meet USP Class VI Plastics.
