US Water Big Clear Commercial Filter Housing 4.5 x 20 | H-4520-C

Sku: 300-H-4520-C

Ask a question (2)
Regular Price: $200.00
Sale Price: $119.95
In Stock

The US Water Big Clear Housing is a commercial-grade high-quality, rugged filter housing built to withstand severe conditions. It's exclusive thread design provides superior sealing and greater security against leaks. The replacement filters are compatable with any 4.5" x 20" filter cartridge on the market.

You may also need
Check items to add to this order or select all and then click ADD TO CART button

view less
Product Description

Product Description

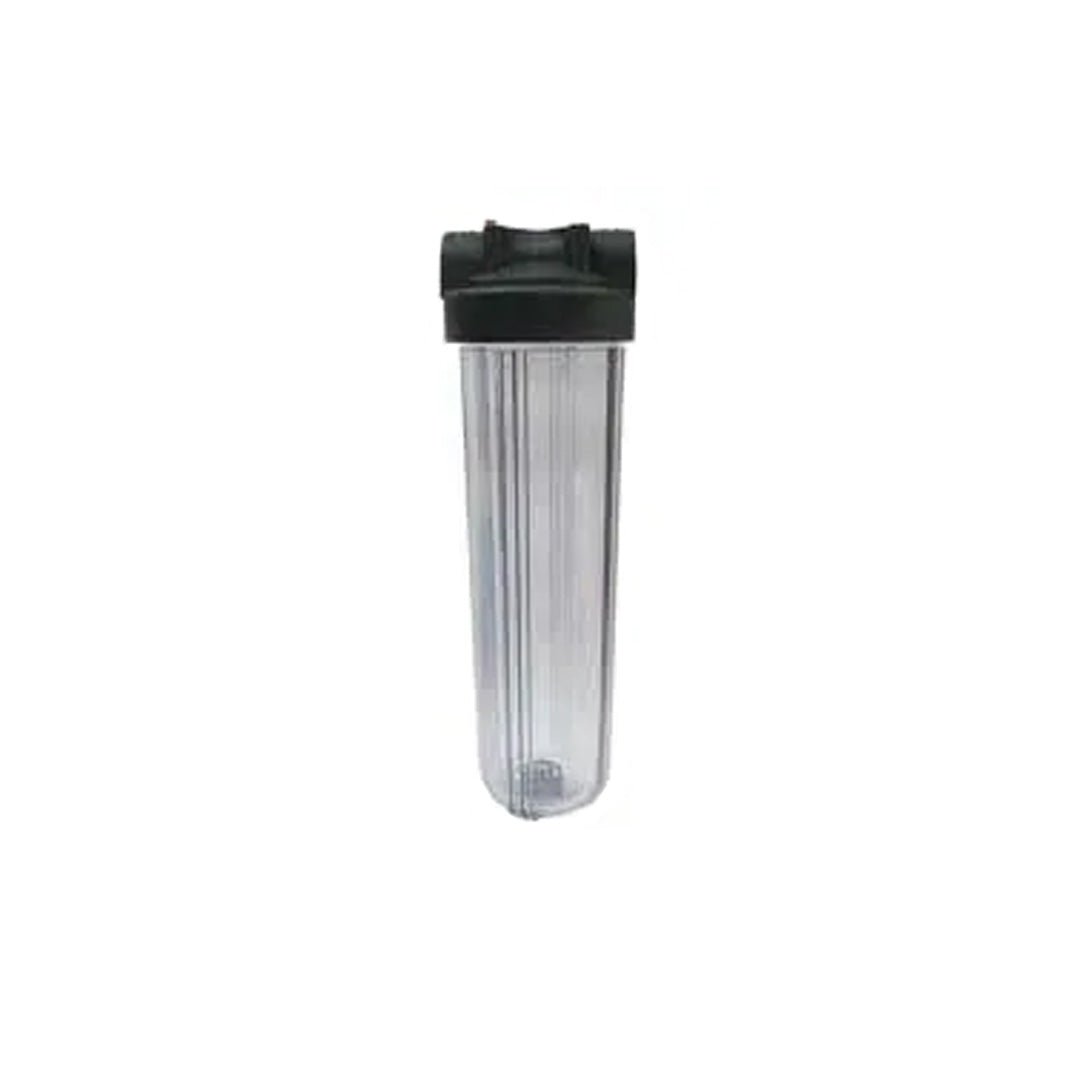

US Water Big Clear 4.5 x 20 Commercial Filter Housing

With 1" Inlet/Outlet - Includes Pressure Relief Valve

The US Water 4.5” x 20” Big Clear Cartridge Housing is a Commercial Grade Housing that will handle heavy filtration needs for years.  It accepts any industry standard 4.5” x 20” filter cartridge which includes, pleated, melt blown, string, gradient density, carbon and any number of specialty filters.  A full listing of all the filters available is found HERE.

Features

  •  Manufactured from the highest quality, FDA grade, 100% NSF listed polypropylene
  • Housing and O-Ring Only (does not include wrench, bracket or screws)
  • Leak-proof sealing is accomplished by compression against a top seated Buna-N O-ring located in the housing’s sump
  • Thick wall and added ribs make the housings ideal for a wide range of applications
  • Buttress Thread Design Provides Superior Sealing & Greater Security
  • Polypropylene construction provides excellent chemical resistance with most acids, alcohol, ammonia, oils, plating solutions and many aggressive chemicals
  • Housings supplied with pressure release valves
  • Rated for temperatures to 100°F and pressures to 90 psi
  • Black Cap/Clear Sump
  • 1" Inlet & Outlet
  • Uses the same cartridges as Ametek, American Plumber, Culligan, Flowmatic, Hydronix, Liquatec, Pentek and Watts, as well as most other brands of housings.
  • Equavalent to Watts Part # W20FFPH1CBPR,  Hydronix HF45-20CLBK10PR and Pentek Big Blue HFPP Part #150233, 150239, 150235

NOTE:  This housing does not include a filter.  Choose any 4.5" x 20' listed below under "Related Products".  If you are unsure what type of filter would be best for your  application, contact one of our Certified Water Specialists at 800-608-USWA or e-mail us at info@uswatersystems.com.  Our experts are available 7 days a week from 8 AM until 11 PM EDT.

Packed 4 to a case - CALL FOR DISCOUNT PRICING ON CASE QUANTITIES OR MULTIPLE CASES.

view less
-
Additional Information

Additional Information

Availability In Stock
Color Black Cap
Clear Sump
Manufacturer US Water Systems

Videos
view less
-

Videos

Sorry No Videos Available

view less
-
Ratings & Reviews

Ratings & Reviews

  • Great

    Love to be able to see the actual filter while it's in use. This is the first of 3 filters I use on incoming water. The next 2 are Big Blues. When this one is visibly dirty, I know that they all need to be changed. The only downside is that I've been told the Big Clear is more brittle than the Big Blue, so use care not to drop when changing filters.

    By on

    Comment
    Was this review helpful to you?
  • 8/26/2013

    Used on a non chlorinated water system (lake water). With the Big Clear there is no more guessing when a filter needs cleaning or changing. Very easy to install! The big clear not only met our needs it far exceeded them.

    By on

    Comment
    Was this review helpful to you?

view less
-
Product FAQs

Product FAQs



Ask a Question

  • Does this come in 3/4" like the Big Blue does?

    No, it only comes in 1” – you have to use a bushing.

  • Is there a removable fitting on top of the housing to add a pressure gauge?

    There is not a fitting on the filter cap for a pressure gauge. We do have a kit which includes everything for inlet & outlet pressure gauges to be added to this housing on both 3/4 and 1" applications. https://www.uswatersystems.com/brass-filter-gauge-and-valve-kit.html
