US Water Systems Spun Poly Sediment Filter 4.5" x 20" 5 Micron

List Price: Factory Direct Price: SALE PRICE:
$58.25 $38.84
$34.95
$34.95
40% OFF FACTORY DIRECT SAVINGS
SKU: 551-USWS-4520-05

Replaces The Following

- Hydronix SDC-45-2005
- Liquatec SDF-45-2005
- Pentek DGD-5005-20
- Neo-Pure MB-45200-05
- Watts FPMB-BB5-20
- FSI Vorex CMMF052045

Subtotal: $34.95

Free Shipping

Free standard shipping on most products over $199.

One Year Satisfaction Guarantee

Learn More.
US Water Systems Spun Poly Sediment Filter 4.5" x 20" 5 Micron

US Water Systems Spun Poly Sediment Filter 4.5" x 20" 5 Micron

$63.61 $34.95

US Water Systems Spun Poly Sediment Filter 4.5" x 20" 5 Micron

$63.61 $34.95

US Water Logo

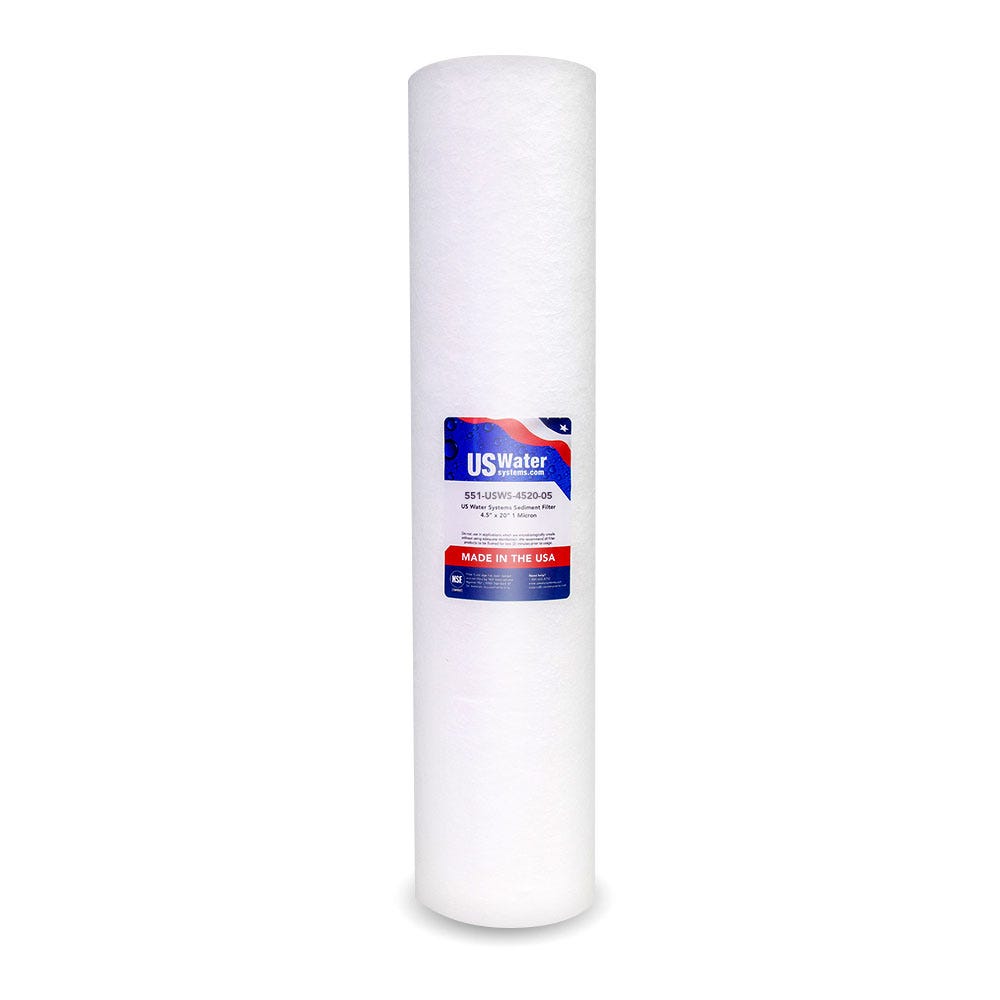

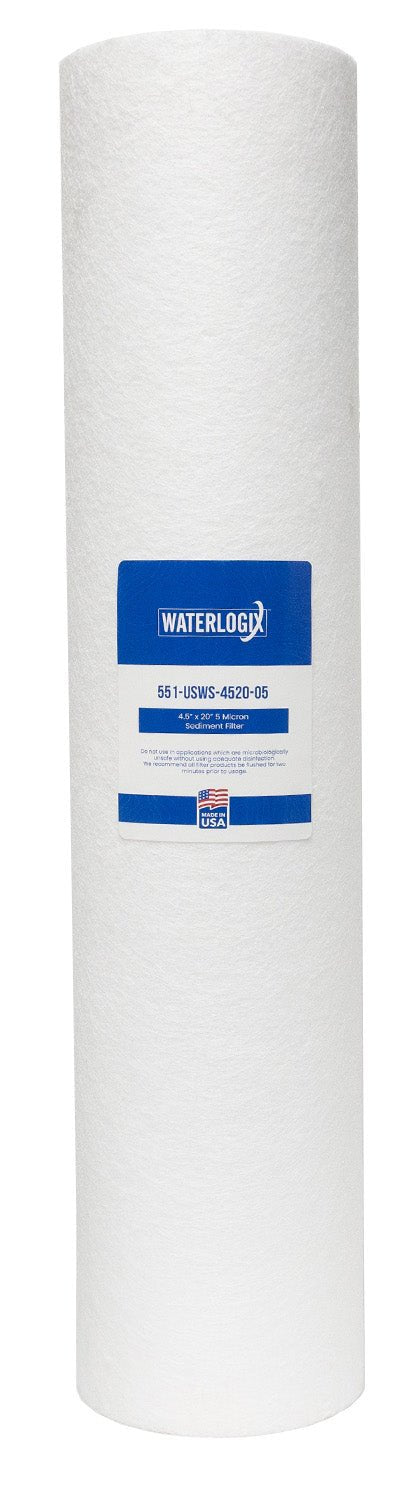

US Water Systems Meltblown Spun Poly Sediment Filter - 4.5" x 20" 5 Micron

US Water Systems Dual-Gradient Sediment filter cartridges are robust, high efficiency polypropylene melt blown depth filters with an internal polypropylene core for added strength. These filters utilize a multi-layered construction for progressive contaminant removal efficiency and longer filter life. Our innovative production process creates a depth filter with superior performance and consistency.

Do not be fooled by import brands that only have a 70% or less efficiency rating, our filters have a 90% efficiency rating.

Features & Benefits

  • made in usaCenter core for strength
  • High flow rates
  • Low pressure drop
  • High dirt-holding-capacity
  • Fixed-pore-structure retains trapped debris
  • FDA listed polypropylene – 21 CFR177.1520
  • Made in the USA

Applications

  • Municipal water filtration
  • RO pre-filtration - fresh water
  • RO pre-filtration - desalination
  • Well water pump-house filtration
  • Commercial point-of-entry water filtration
  • Residential point-of-entry water filtration
  • Bottled water
  • Juices, flavors, food rinse water
  • Cosmetics, toiletries

Specifications

  • Temperature:  40°F (4.4°C) - 176°F (80°C)
  • Filter Media:  Polypropylene, per FDA CFR 117.1520
  • Rigid International Filter Support Core:  Polypropylene, per FDA CFR 117.1520
  • Cartridge ID:  1-1/6” (2.7cm)
  • Cartridge OD:  4.5”
  • Length:  20"
  • Micron Rating:  5 Micron
  • Efficiency:  90%
  • Recommended Max. Differential Pressure
    • 60 PSID @ 68° F (4.1 bar @ 20° C)
    • 30 PSID @ 176° F (2.1 bar @ 80° C)

pressure drop
